Technical specification.
An in-depth guide for the Twig One ATEX.
About your new device.

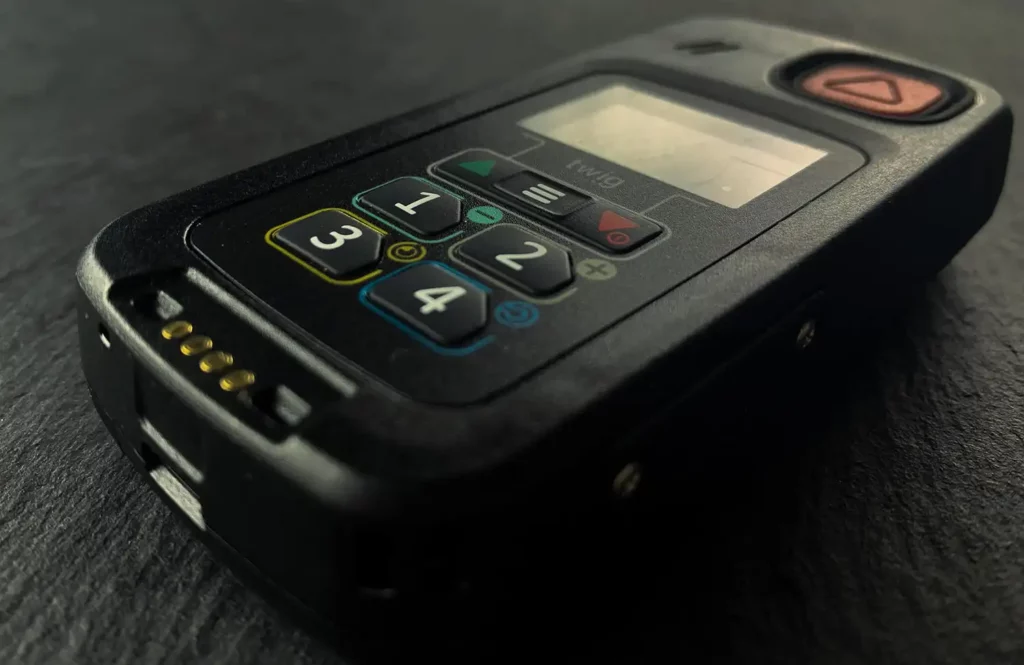

Twig One ATEX is an intrinsically safe personal alarm device, that is optimised for lone workers working in potentially explosive environments and meets relevant BS8484 criteria.
How it works
The diverse range of lone worker environments means a growing demand for lone worker devices, apps and accessories. The Twig One ATEX is a powerful lone worker device with high power speaker that boasts two-way communication and powerful vibrating and alerting alarms that help to notify lone workers of an alarm in noisy working conditions.
A simple press of the large panic button will raise an alarm in The OWL Portal and open an audio channel to our dedicated response team. If you don’t use our response team, LONEALERT will initiate the calls, SMS and email notifications that you have designated as part of your response.
A serious choice for heavy duty applications.
Suitable for hazardous areas
The Twig One ATEX is ATEX/IECEx approved and can be used in hazardous and potentially explosive environments.
Peace of mind
Allows lone workers to carry out their daily job role with added peace of mind, regardless of how noisy or dusty the working conditions may be.
Durable
Durable, rugged and waterproof with automatic ManDown detection on fall, tilt or impact.
On screen messages
On screen confirmation messages with built in GPS receiver and indoor location.
Indoor positioning
In many buildings the GNSS (Global Navigation Satellite System) signals are blocked and so the location of your lone worker is not known. The Twig One ATEX allows indoor locating through the SRD3 option which enables accurate location through using necessary bolt-ons such as RF Door tags, to record when rooms are entered and left, and beacons, to allow large areas to be subdivided. Both of which help you locate lone workers in need of assistance more quickly.
Powerful and robust
Powerful vibrating and alerting alarms to alert workers of preset alarms and incoming communications.
Fully customisable
This device is fully customisable. The duration of the man down pre-alarm countdown can be changed depending on your requirements. It is also possible to customise the time between tilt detection and when the device starts to alert the user an alert is about to be raised. These are both set to 30 seconds by default. The device can also be set to VIBRATE for panic and alerts.
IP67 rated and meets BS8484 criteria
The Twig One ATEX is waterproof with protection against the effects from immersion of water, of up to 1m for 30 minutes. It's also dust tight, with no ingress of dust. The device also meets relevant BS8484 criteria.
Compatibility and communications
Communication
Communicates with all systems using MPTP (mobile phone telematics protocol) both SMS and GPRS (IP).
Compatibility
Tracking and alert messages both include information on satellite positioning, TWIG SRD beacons and battery charge.
Mechanics
Dimensions
102.1mm x 48.9mm x 24.6mm
Weight
114g including battery
Water and dust proof
Water, dust proof (IP67) and shock resistant
Firm grip
Firm grip with tactile silicone keypad
Standard Sales Package
Device
Twig One ATEX 2G/3G/4G personal alarm device with ManDown alarm and GNSS functions and integral battery
Included accessories

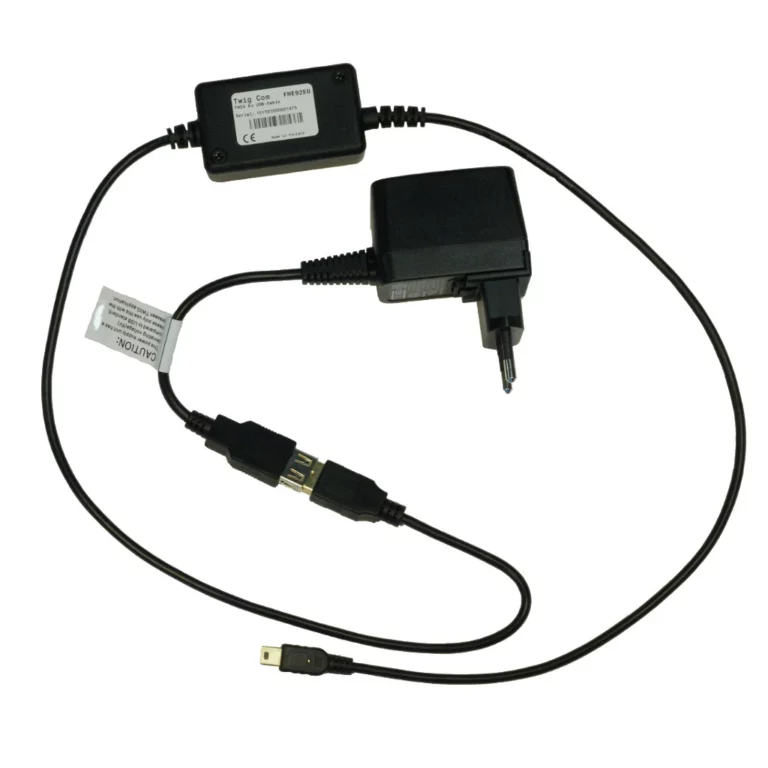

Charger with adapter of choice (EU/UK/AU)
Operating Time
Rechargeable
Rechargeable 1350 mAh Li-ion battery
Recharging time
< 4hrs for 95%
Operating time (cellular network standby)
Up to 12 days (cellular network standby)
Operating temperature
-20c +50c
Typical operating times
Please see table below for GNSS satellite positioning / cellular data reporting intervals.
| Time interval | Report frequency |
|---|---|
|
9 days |
(1 report / hr) |
|
5 days |
(1 report / 10 mins) |
|
33 hours |
1 report / min) |
|
10 hours |
1 report / 5 sec |
Suitable for hazardous areas
ATEX/IECEx approved
• II 2 G Ex ib IIC T4 Gb
• II 2 D Ex ib IIIC T130° Db
• Ta: -20°C..+60°C
• EESF 20 ATEX 045X / IECEx EESF 19.0020X
Satellite positioning system
High performance
High performance 48 channel receiver
Time to first fix
Hot start 1s; cold start <35s
Extended ephemeris
Extended ephemeris on board generation
GNSS receiver
Multi constellation GNSS receiver (GPS, Glonass and Galileo)
Configurable
Configurable opt-out and roaming block
Motion control
Motion based GNSS control
Key technical features
GSM/GPRS/EDGE
Dual band 900/1800MHz
LTE (VoLTE not supported)
Penta band 700 (Bd28) / 800 (Bd20) / 900 (Bd8) / 1800 (Bd3) / 2100 MHz (Bd1)
Speakerphone
Speakerphone with 2 microphones
UMTS/HSPA+
Dual band 900 (BdVIII) / 2100MHz (Bd1)
Built-in antennas
Built-in GSM, SRD, GNSS, WiFi, BLE, NFC antennas
Powerful vibrating alarm
Powerful vibrating alarm
Accessories
What’s in the box:
Twig One ATEX

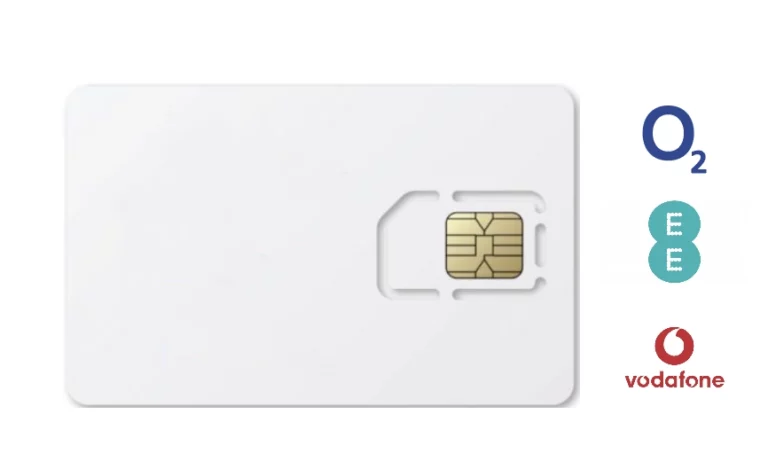

Multi Network SIM Card

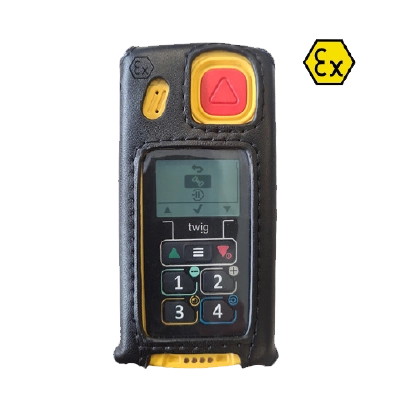

Leather Case
Micro USB Lead
3 pin-main charger
Product Manual

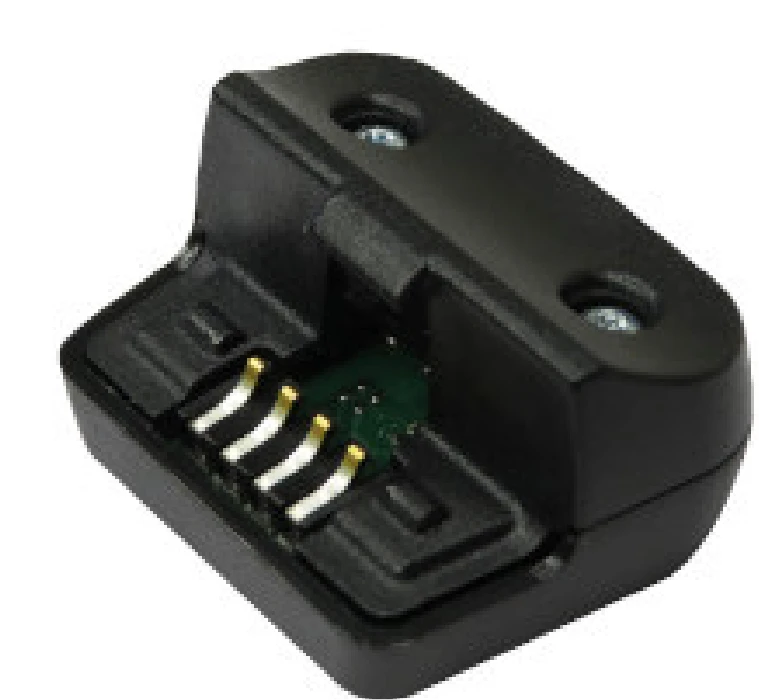

Charger Adapter
Indoor locating accessories:

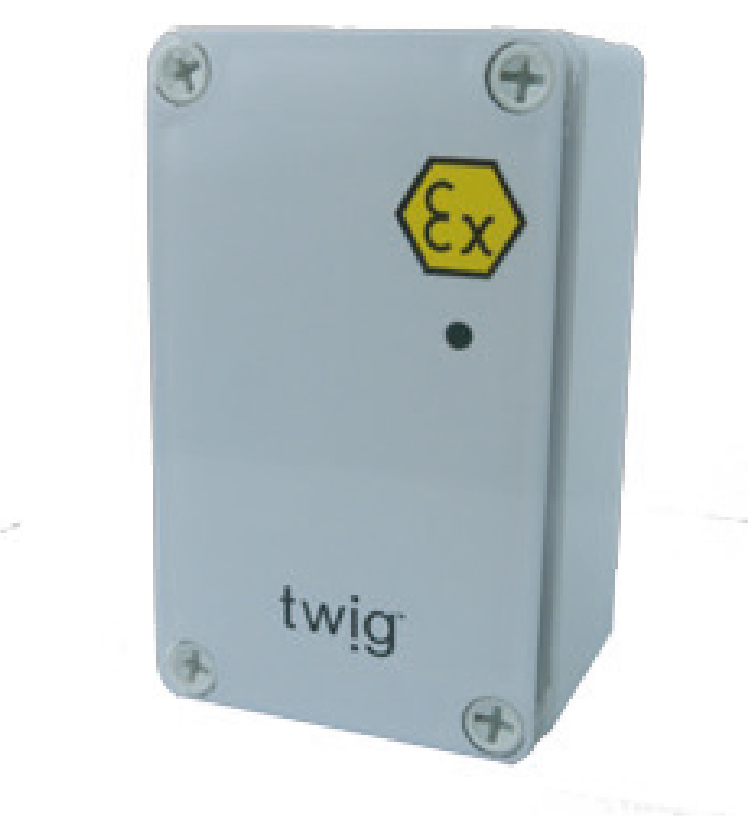

ATEX Beacon
Door tag
Not ATEX Rated
Bluetooth Beacon
Not ATEX Rated

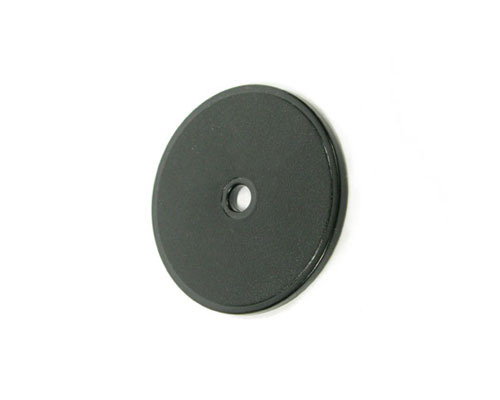

NFC Tag
Not ATEX Rated
